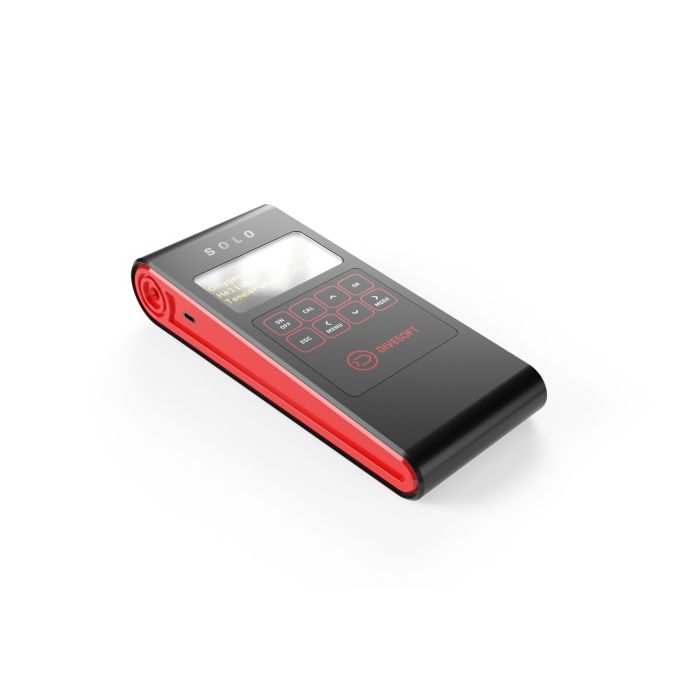

THE DIVESOFT SOLO ANALYZER MAKES GAS ANALYSIS SIMPLE, ACCURATE AND RELIABLE. WITH SOLO, YOU WILL ALWAYS KNOW WHAT YOU ARE BREATHING WHEREVER YOU GO.
The lightweight and robust body is made from ABS-PC. Our new analyzer offers an easy-to-read display and intuitive controls. The USB-C connector makes it easy to program and takes less than 4 hours to fully charge. The three-point calibration system ensures accurate measurements, so you can head out with confidence and explore the depths.
Analyzer SOLO is made from durable material and is an ideal travel companion.
Using our patented helium measuring method, which is also used in our Liberty rebreathers, we can determine the helium content of gases using the change in the speed of sound. Without the need to ever replace your Helium sensor.
Measurement temperature: 0 to + 40 ° C (32 - 104 ° F)
Mixture Pressure: Corresponds to an ambient pressure in the range of 700-1100 millibars (20-32 inches Hg), which corresponds to a standard atmosphere at 0 to 3000 m (0-10000 ft)
Nominal gas flow rate: 0.2 l / min
Sound speed measurement base: 800 mm
Measuring cycle: 200ms
The connection dimensions of the sampler: Standard for a DIN valve (EN 144-2) for 200/300 bars (G 5/8 thread). Samplers with a connection to any standardized or common valves are available on request or as optional equipment
Oxygen sensor: R22 S (Molex connector)
Easy to replace O2 sensor
Oxygen sensor life expectancy: 2 years
Replaceable battery: Through authorised service centre
Battery: 120 measurements or 4 hours of continuous operation
Warranty: 24 months, 12 months on battery
Charging and programming: USB-C
Charging time: 3-4 h
Display: OLED
Body: ABS-PC
Package contents:
Analyzer SOLO
USB-C cable
Simple flow limiter
Case
User Manual:
To download the Divesoft SOLO Analyzer user manual click here.
