Oxygen analyser (without oxy cell) for Ratio iX3M and iDive Color series

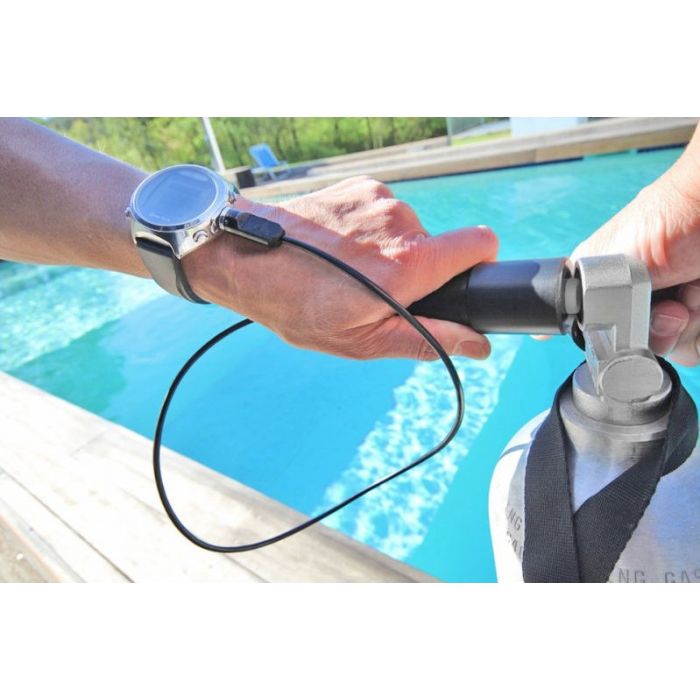

Turn your iDive or iX3M in a professional, fully automatic Gas Mix Analyser. (OXY Cell is not included ) FIND HERE
£258.00
£215.00
In stock
Call us on +44 (0)1933 681255 (option 1) to order by phone
Back to Top
This lovely little O2 analyser only fits the Ratio computer range but turned those computers into an easy to use analyser!

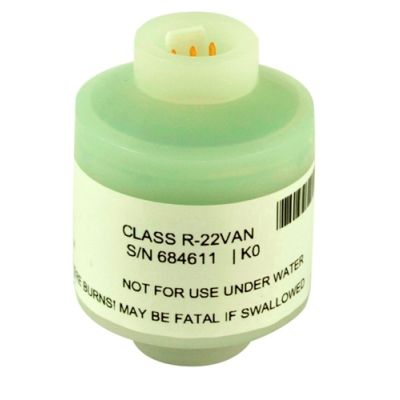

Sensor: Electrochemical (compatible with Vandagraph R-22VAN you can find HERE ) or you could use an old molex rebreather sensor! Range: 0.1-100%, Resolution: 0.1% Accuracy: +/- 1% Temperature of use: 0 -> +40°C Temperature of stock: 0 -> +50°C Sensor life-time: about 36 months (at 25°C, 50% R.H., sea level, with protection cap plugged) (from a new sensor) User-replaceable sensor Sensor update time: c.a. 10sec user-replaceable battery Battery type: 1.5V type N, LR1, MN9100,AM5, 4001 (standard) Automatic calibration of the sensor: Yes Automatic validation of the sensor: Yes
--
What's in the box
Oxygen analyser 1 battery 1.5V type N, LR1, MN9100,AM5, 4001 (standard) 1 protective cap for sensor
VIDEO
VIDEO
Technical Specification
SKU
AC002
Barcode (EAN)
5096487527722
Delivery
we try to hold stock of all products, but if showing out of stock there may be a few days wait while new stock arrives.
